Flanged Units
ASPFL2 Series Pressed Steel Oval Flange Units
Lightweight two-bolt oval flange unit with a pressed (stamped) steel housing instead of cast iron, for lower-load applications where weight and cost matter more than maximum load capacity. A lighter-duty alternative to the cast iron UCFL2 series for light machinery and equipment panels.

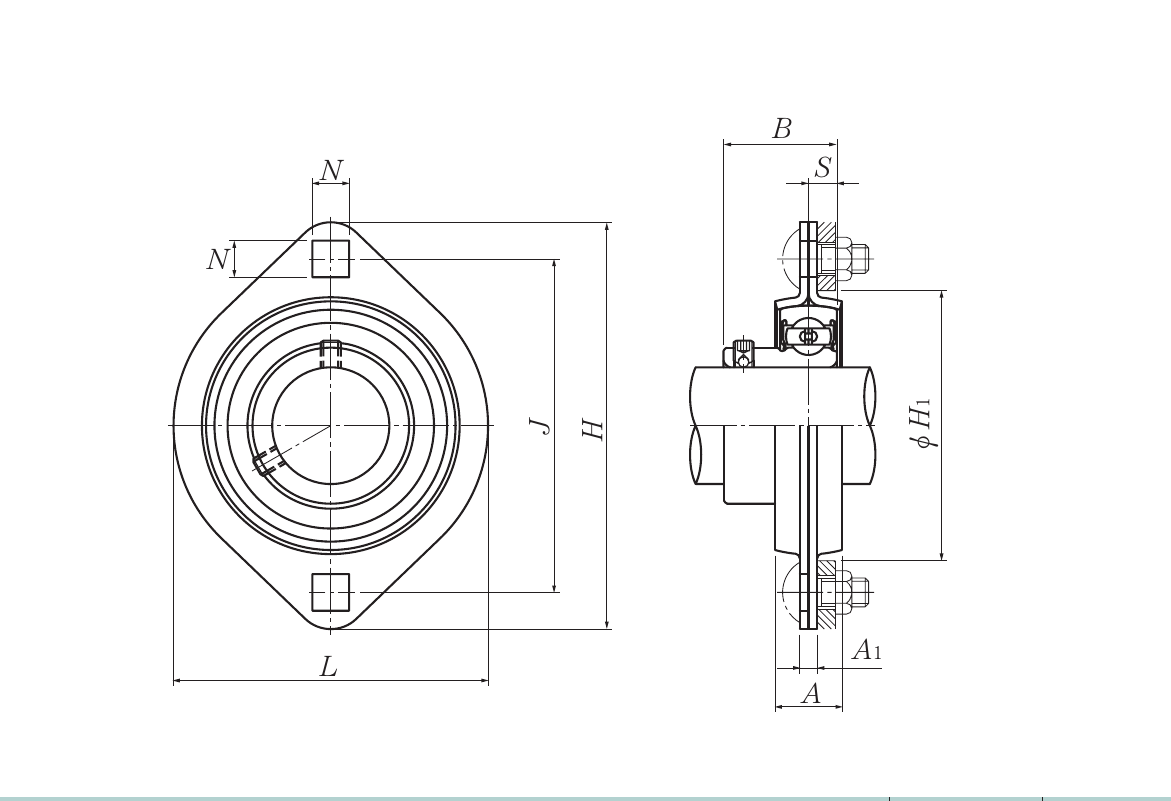

Reference dimension diagram — see table below for exact values per size.
Dimensions & Part Numbers
| Shaft Dia. (mm) | Unit Number | H (Overall Length) (mm) | J (Bolt Hole Span) (mm) | A (Flange Width) (mm) | L (Width) (mm) | B (mm) | Bolt Size | Bearing Insert No. |
|---|---|---|---|---|---|---|---|---|
| 12 | ASPFL201 | 81 | 63.5 | 14 | 59 | 22 | M6 | AS201 |
| 15 | ASPFL202 | 81 | 63.5 | 14 | 59 | 22 | M6 | AS202 |
| 17 | ASPFL203 | 81 | 63.5 | 14 | 59 | 22 | M6 | AS203 |
| 20 | ASPFL204 | 90 | 71.5 | 16 | 67 | 25 | M8 | AS204 |
| 25 | ASPFL205 | 95 | 76 | 18 | 71 | 27 | M8 | AS205 |
| 30 | ASPFL206 | 113 | 90.5 | 18 | 84 | 29 | M10 | AS206 |
| 35 | ASPFL207 | 122 | 100 | 20 | 94 | 34 | M10 | AS207 |
| 40 | ASPFL208 | 148 | 119 | 21 | 100 | 38 | M12 | AS208 |
Dimensions and part numbers per manufacturer technical catalogue. Max. recommended load applies at 2400 min⁻¹ or below.
Request Quote for ASPFL2Typical Applications
- Light-duty conveyor and packaging machinery
- Panel-mounted shafts on enclosures and light equipment frames
- Cost-sensitive applications where cast iron's extra load capacity isn't needed
- Retrofit or replacement where a lighter housing simplifies installation
Frequently Asked Questions
What sizes are available in the ASPFL2 series?
ASPFL2 units are available from 12mm – 40mm bore, as listed in the dimension table below. Each size has its own part number for ordering.
What is the housing material and locking type for ASPFL2?
ASPFL2 uses a pressed steel housing with set screw locking, sourced from NTN, FAG, SKF, FYH, Asahi, DTC and SLS.
What is ASPFL2 typically used for?
Common applications include light-duty conveyor and packaging machinery and panel-mounted shafts on enclosures and light equipment frames, and similar general industrial shaft-support duties.
Need pricing on ASPFL2 units?
Share your shaft size and quantity — our technical team will confirm availability and pricing within one business day.
