Flanged Units
UCFL2 Series Oval (2-Bolt) Flange Units
Two-bolt oval (rhombus) flange cast iron housing — a lighter, more compact alternative to the 4-bolt square flange where mounting space is limited, commonly used on smaller gearboxes, blowers and packaging machinery.

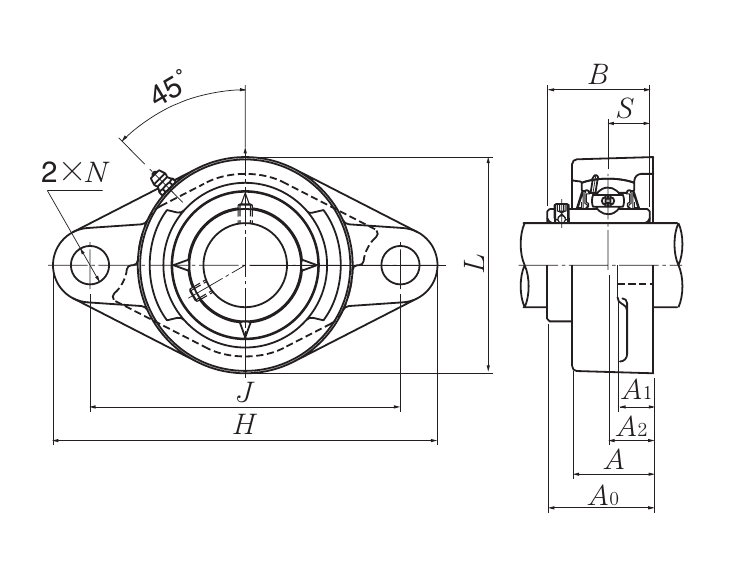

Reference dimension diagram — see table below for exact values per size.
Dimensions & Part Numbers
| Shaft Dia. (mm) | Unit Number | H (Overall Length) (mm) | J (Flange Height) (mm) | A (Bolt Spacing) (mm) | L (Bolt Hole Span) (mm) | Bolt Size | Bearing Insert No. |
|---|---|---|---|---|---|---|---|
| 12 | UCFL201 | 113 | 90 | 25.5 | 60 | M10 | UC201 |
| 15 | UCFL202 | 113 | 90 | 25.5 | 60 | M10 | UC202 |
| 17 | UCFL203 | 113 | 90 | 25.5 | 60 | M10 | UC203 |
| 20 | UCFL204 | 113 | 90 | 25.5 | 60 | M10 | UC204 |
| 25 | UCFL205 | 130 | 99 | 27 | 68 | M14 | UC205 |
| 30 | UCFL206 | 148 | 117 | 31 | 80 | M14 | UC206 |
| 35 | UCFL207 | 161 | 130 | 34 | 90 | M14 | UC207 |
| 40 | UCFL208 | 175 | 144 | 36 | 100 | M14 | UC208 |
| 45 | UCFL209 | 188 | 148 | 38 | 108 | M16 | UC209 |
| 50 | UCFL210 | 197 | 157 | 40 | 115 | M16 | UC210 |
| 55 | UCFL211 | 224 | 184 | 43 | 130 | M16 | UC211 |
| 60 | UCFL212 | 250 | 202 | 48 | 140 | M20 | UC212 |
| 65 | UCFL213 | 258 | 210 | 50 | 155 | M20 | UC213 |
| 70 | UCFL214 | 265 | 216 | 54 | 160 | M20 | UC214 |
| 75 | UCFL215 | 275 | 225 | 56 | 165 | M20 | UC215 |
| 80 | UCFL216 | 290 | 233 | 58 | 180 | M22 | UC216 |
| 85 | UCFL217 | 305 | 248 | 63 | 190 | M22 | UC217 |
| 90 | UCFL218 | 320 | 265 | 68 | 205 | M22 | UC218 |
Dimensions and part numbers per manufacturer technical catalogue, set-screw locking type.
