UCP2 Series Pillow Block Units
Two-bolt cast iron pillow block housing with a set-screw locking insert bearing. The standard, most widely specified mounted bearing configuration — used for general-purpose shaft support on conveyors, fans, agitators and light-to-medium industrial machinery.

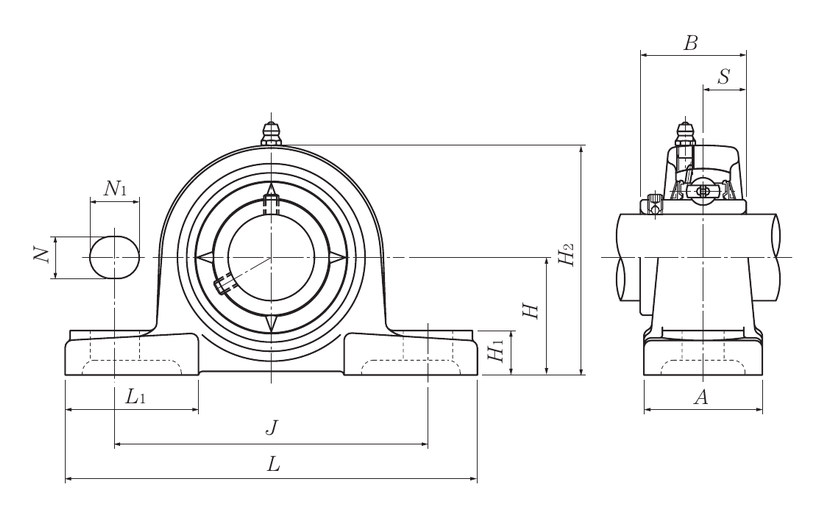

Reference dimension diagram — see table below for exact values per size.
Dimensions & Part Numbers
| Shaft Dia. (mm) | Unit Number | L (Length) (mm) | H (Height) (mm) | A (Bolt Spacing) (mm) | B (Width) (mm) | Bolt Size | Bearing Insert No. |
|---|---|---|---|---|---|---|---|
| 12 | UCP201 | 127 | 30.2 | 95 | 31 | M10 | UC201 |
| 15 | UCP202 | 127 | 30.2 | 95 | 31 | M10 | UC202 |
| 17 | UCP203 | 127 | 30.2 | 95 | 31 | M10 | UC203 |
| 20 | UCP204 | 127 | 33.3 | 95 | 31 | M10 | UC204 |
| 25 | UCP205 | 140 | 36.5 | 105 | 34.1 | M10 | UC205 |
| 30 | UCP206 | 165 | 42.9 | 121 | 38.1 | M14 | UC206 |
| 35 | UCP207 | 167 | 47.6 | 127 | 42.9 | M14 | UC207 |
| 40 | UCP208 | 184 | 49.2 | 137 | 49.2 | M14 | UC208 |
| 45 | UCP209 | 190 | 54 | 146 | 49.2 | M14 | UC209 |
| 50 | UCP210 | 206 | 57.2 | 159 | 51.6 | M16 | UC210 |
| 55 | UCP211 | 219 | 63.5 | 171 | 55.6 | M16 | UC211 |
| 60 | UCP212 | 241 | 69.8 | 184 | 65.1 | M16 | UC212 |
| 65 | UCP213 | 265 | 76.2 | 203 | 65.1 | M20 | UC213 |
| 70 | UCP214 | 266 | 79.4 | 210 | 74.6 | M20 | UC214 |
| 75 | UCP215 | 275 | 82.6 | 217 | 77.8 | M20 | UC215 |
| 80 | UCP216 | 292 | 88.9 | 232 | 82.6 | M20 | UC216 |
| 85 | UCP217 | 310 | 95.2 | 247 | 85.7 | M20 | UC217 |
| 90 | UCP218 | 327 | 101.6 | 262 | 96 | M22 | UC218 |
Dimensions and part numbers per manufacturer technical catalogue, set-screw locking type.
