Cartridge Units
UCC2 Series Cartridge Units
Cylindrical cast iron sleeve housing designed to slide into a bored/tube mounting rather than bolt to a flat surface. Used where the bearing needs to fit inside a pillow, pipe stand or fabricated tube, common in agricultural and material-handling equipment.

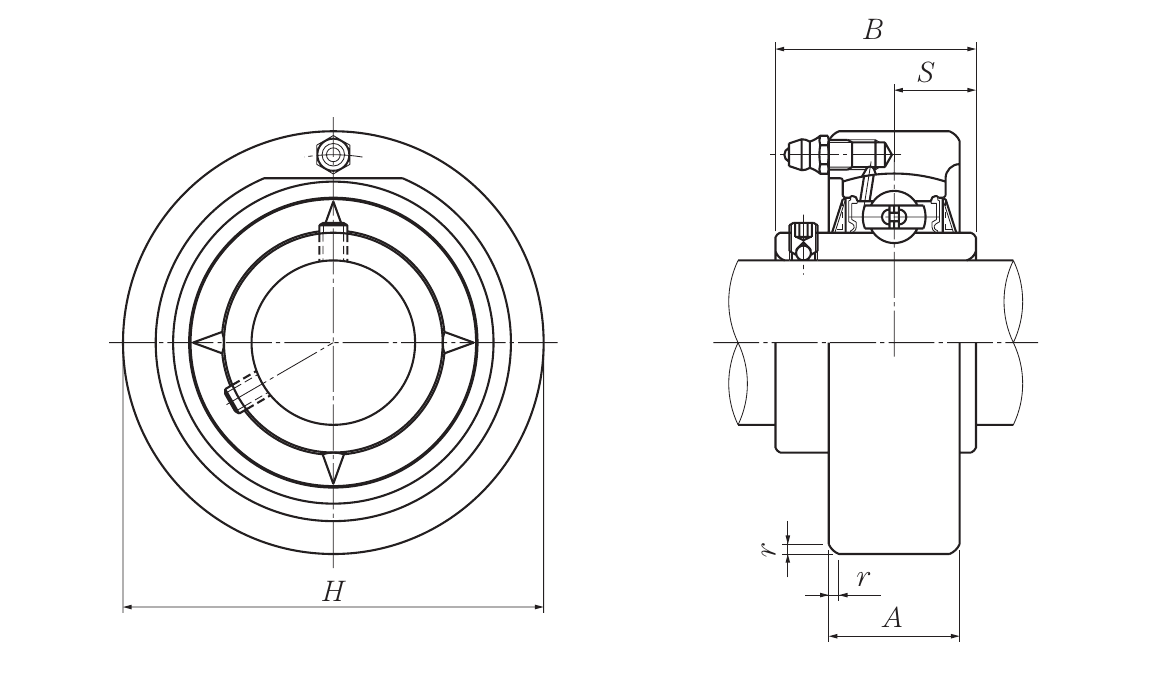

Reference dimension diagram — see table below for exact values per size.
Dimensions & Part Numbers
| Shaft Dia. (mm) | Unit Number | H (Outer Dia.) (mm) | A (Width) (mm) | B (mm) | Bearing Insert No. | Housing No. |
|---|---|---|---|---|---|---|
| 12 | UCC201 | 72 | 20 | 31 | UC201 | C204 |
| 15 | UCC202 | 72 | 20 | 31 | UC202 | C204 |
| 17 | UCC203 | 72 | 20 | 31 | UC203 | C204 |
| 20 | UCC204 | 72 | 20 | 31 | UC204 | C204 |
| 25 | UCC205 | 80 | 22 | 34.1 | UC205 | C205 |
| 30 | UCC206 | 85 | 27 | 38.1 | UC206 | C206 |
| 35 | UCC207 | 90 | 28 | 42.9 | UC207 | C207 |
| 40 | UCC208 | 100 | 30 | 49.2 | UC208 | C208 |
| 45 | UCC209 | 110 | 31 | 49.2 | UC209 | C209 |
| 50 | UCC210 | 120 | 33 | 51.6 | UC210 | C210 |
| 55 | UCC211 | 125 | 35 | 55.6 | UC211 | C211 |
| 60 | UCC212 | 130 | 38 | 65.1 | UC212 | C212 |
| 65 | UCC213 | 140 | 40 | 65.1 | UC213 | C213 |
Dimensions and part numbers per manufacturer technical catalogue, set-screw locking type.
