Pillow Block Units
F-UCPM2 Series Stainless Steel Pillow Block Units
Stainless steel pillow block housing with a corrosion-resistant bearing insert, for wash-down, high-humidity or mildly corrosive environments where a standard cast iron unit would rust. Standard choice for food processing, pharmaceutical, beverage and outdoor equipment applications.

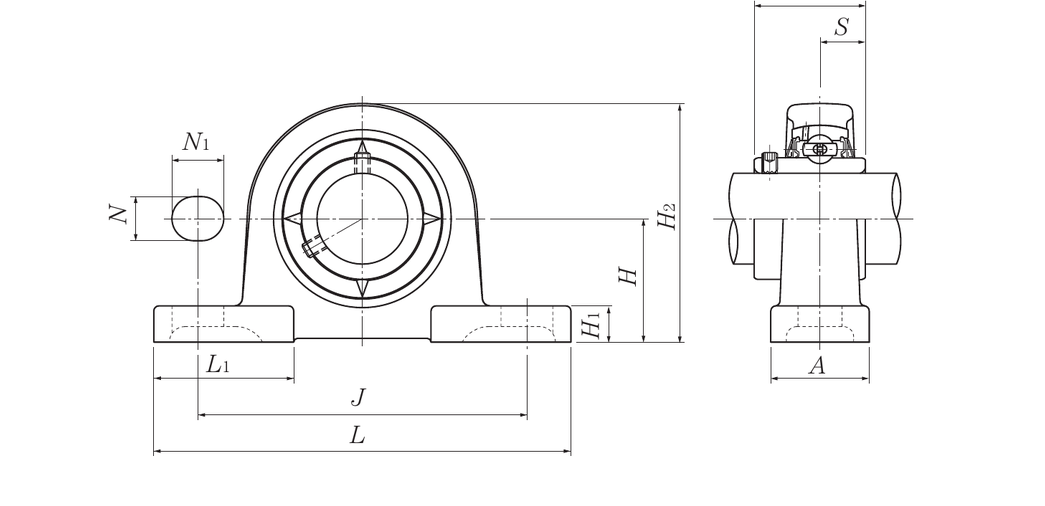

Reference dimension diagram — see table below for exact values per size.
Dimensions & Part Numbers
| Shaft Dia. (mm) | Unit Number | L (Length) (mm) | H (Height) (mm) | J (Bolt Hole Span) (mm) | A (Width) (mm) | Bolt Size |
|---|---|---|---|---|---|---|
| 20 | F-UCPM204/LP09 | 120 | 33.3 | 95 | 30 | M10 |
| 25 | F-UCPM205/LP09 | 130 | 36.5 | 105 | 30 | M10 |
| 30 | F-UCPM206/LP09 | 155 | 42.9 | 121 | 36 | M14 |
| 35 | F-UCPM207/LP09 | 161 | 47.6 | 127 | 38 | M14 |
| 40 | F-UCPM208/LP09 | 171 | 49.2 | 137 | 40 | M14 |
| 45 | F-UCPM209/LP09 | 180 | 54 | 146 | 40 | M14 |
| 50 | F-UCPM210/LP03 | 195 | 57.2 | 159 | 45 | M16 |
Dimensions and part numbers per manufacturer technical catalogue. Uses solid grease as standard; food-grade or heat-resistant grease options available on request.
Request Quote for F-UCPM2Typical Applications
- Food and beverage processing lines
- Pharmaceutical and cleanroom equipment
- Wash-down and outdoor equipment exposed to moisture
- Marine and coastal installations where corrosion resistance matters
Frequently Asked Questions
What sizes are available in the F-UCPM2 series?
F-UCPM2 units are available from 20mm – 50mm bore, as listed in the dimension table below. Each size has its own part number for ordering.
What is the housing material and locking type for F-UCPM2?
F-UCPM2 uses a stainless steel housing with set screw locking, sourced from NTN, FAG, SKF, FYH, Asahi, DTC and SLS.
What is F-UCPM2 typically used for?
Common applications include food and beverage processing lines and pharmaceutical and cleanroom equipment, and similar general industrial shaft-support duties.
