Hanger Units
UCHB2 Series Hanger Units
Cast iron hanger unit that suspends from an overhead threaded rod rather than bolting to a flat surface or flange, supporting a horizontal shaft from above. Standard choice for overhead line-shafting, conveyor troughs and agricultural augers where the mounting structure is above the shaft rather than below or beside it.

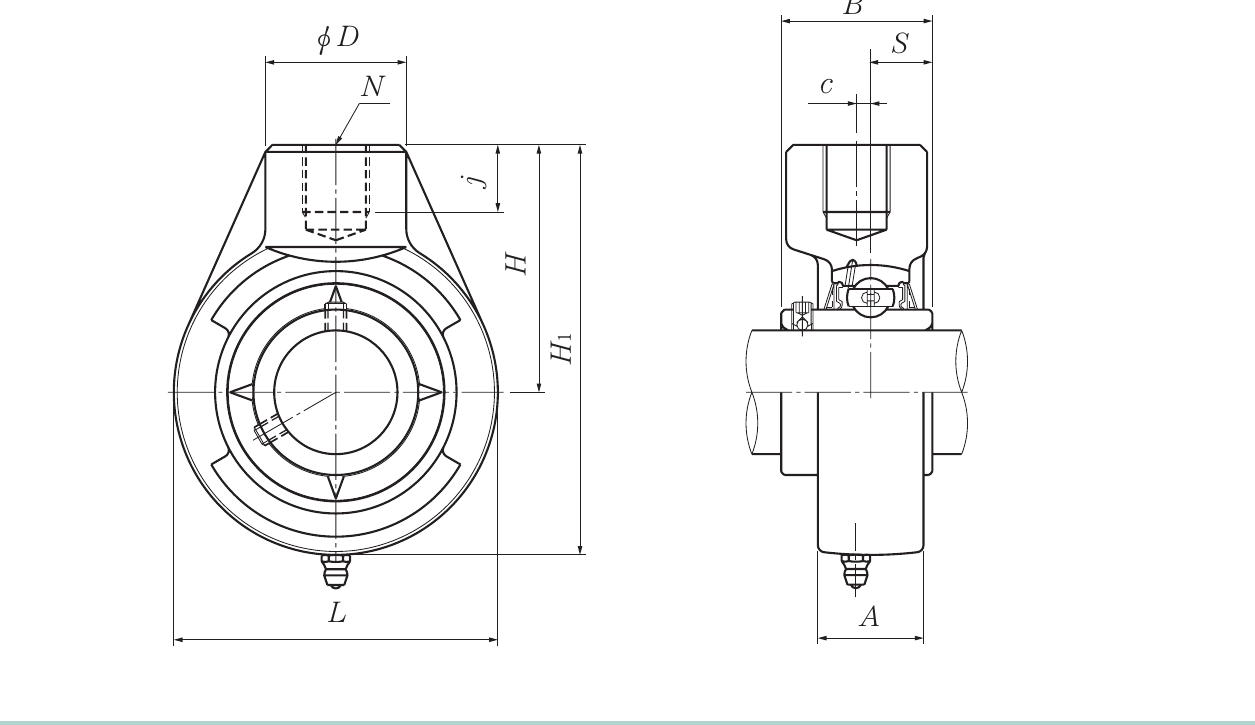

Reference dimension diagram — see table below for exact values per size.
Dimensions & Part Numbers
| Shaft Dia. (mm) | Unit Number | L (Length) (mm) | H1 (Overall Height) (mm) | H (Height) (mm) | A (Width) (mm) | N (Rod Thread) | Bearing Insert No. |
|---|---|---|---|---|---|---|---|
| 12 | UCHB201 | 64 | 96 | 64 | 21 | Rp3/4 | UC201 |
| 15 | UCHB202 | 64 | 96 | 64 | 21 | Rp3/4 | UC202 |
| 17 | UCHB203 | 64 | 96 | 64 | 21 | Rp3/4 | UC203 |
| 20 | UCHB204 | 64 | 96 | 64 | 21 | Rp3/4 | UC204 |
| 25 | UCHB205 | 78 | 103 | 64 | 24 | Rp3/4 | UC205 |
| 30 | UCHB206 | 78 | 103 | 64 | 28 | Rp3/4 | UC206 |
| 35 | UCHB207 | 92 | 116 | 70 | 30 | Rp3/4 | UC207 |
| 40 | UCHB208 | 96 | 121 | 73 | 33 | Rp3/4 | UC208 |
| 45 | UCHB209 | 108 | 136 | 82 | 35 | Rp1 | UC209 |
Dimensions and part numbers per manufacturer technical catalogue, set-screw locking type. N is the rod-mount thread size (BSP).
Request Quote for UCHB2Typical Applications
- Overhead line-shafting support
- Conveyor trough overhead mounting
- Agricultural auger and elevator shafting
- Installations where mounting from above is required rather than a floor or wall fixing
Frequently Asked Questions
What sizes are available in the UCHB2 series?
UCHB2 units are available from 12mm – 45mm bore, as listed in the dimension table below. Each size has its own part number for ordering.
What is the housing material and locking type for UCHB2?
UCHB2 uses a cast iron housing with set screw locking, sourced from NTN, FAG, SKF, FYH, Asahi, DTC and SLS.
What is UCHB2 typically used for?
Common applications include overhead line-shafting support and conveyor trough overhead mounting, and similar general industrial shaft-support duties.
