Four Point Contact Ball Bearings
QJ213 Four Point Contact Ball Bearing
65 × 120 × 23 mm
QJ213 is a four point contact ball bearing from the QJ200 series with a 65 mm bore, a 120 mm outside diameter and a 23 mm width. It has a dynamic load rating of 93,600 N and a static load rating of 93,600 N and a speed rating of 5,040 rpm (oil lubrication), weighing about 1.2 kg. The radial cross-section (D − d) is 55 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS

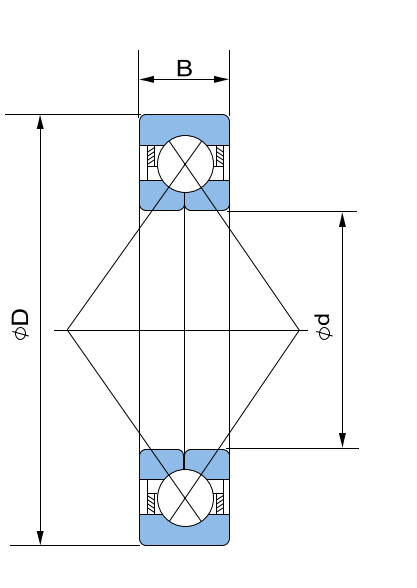

QJ213 Specifications
| Bearing No. | QJ213 |
|---|---|
| d (Bore) | 65 mm |
| D (Outer Dia.) | 120 mm |
| B (Width) | 23 mm |
| Dynamic Load | 93,600 N |
| Static Load | 93,600 N |
| Max. RPM | 5,040 |
| Weight | 1.2 kg |
| Series | QJ200 Series Four Point Contact Ball Bearings |
Other Bearings with 65 mm Bore
| Bearing No. | Series | D (Outer Dia.) mm | Dynamic Load N |
|---|---|---|---|
| QJ313 | QJ300 | 140 | 148,500 |
Neighbouring Sizes in the QJ200 Series
QJ213 — Frequently Asked Questions
What are the dimensions of the QJ213 bearing?
The QJ213 has a bore (d) of 65 mm, an outside diameter (D) of 120 mm and a width of 23 mm, so it is written 65 × 120 × 23 mm.
What is the load rating of the QJ213?
Dynamic load rating 93,600 N and static load rating 93,600 N. The speed rating is 5,040 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Which other bearings have the same 65 mm bore as the QJ213?
Other four point contact ball bearings with a 65 mm bore include QJ313 (140 mm OD). A larger outside diameter generally means a higher load rating.
Do you supply the QJ213 bearing across India?
Yes. Logass Trade Centre supplies the QJ213 Pan India with technical support, from single pieces to bulk orders. Use the quote button to share your quantity and brand preference.
