Thrust Ball Bearings
53310 Thrust Ball Bearing
50 × 95 × 34.4 mm
53310 is a thrust ball bearing from the 533 series with a 50 mm bore, a 95 mm outside diameter and a 34.4 mm height. It has a dynamic load rating of 86,850 N and a static load rating of 181,800 N and a speed rating of 2,430 rpm (oil lubrication), weighing about 1 kg. The radial cross-section (D − d) is 45 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS
53310 Specifications

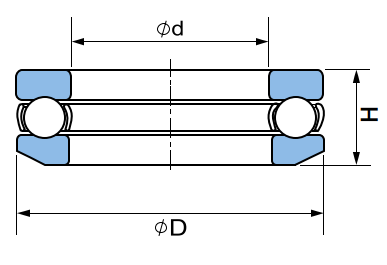

| Bearing No. | 53310 |
|---|---|
| d (Bore) | 50 mm |
| D (Outer Dia.) | 95 mm |
| H (Height) | 34.4 mm |
| Dynamic Load | 86,850 N |
| Static Load | 181,800 N |
| Max. RPM | 2,430 |
| Weight | 1 kg |
| Series | 533 Series Single Direction Thrust Ball Bearings with Spherical Housing Washer |
53310 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the 533 series page.
Neighbouring Sizes in the 533 Series
53310 — Frequently Asked Questions
What are the dimensions of the 53310 bearing?
The 53310 has a bore (d) of 50 mm, an outside diameter (D) of 95 mm and a height of 34.4 mm, so it is written 50 × 95 × 34.4 mm.
What is the load rating of the 53310?
Dynamic load rating 86,850 N and static load rating 181,800 N. The speed rating is 2,430 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Is the 53310 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include 53310 M (machined brass cage). Tell us the exact designation you need in a quote request.
Which other bearings have the same 50 mm bore as the 53310?
Other thrust ball bearings with a 50 mm bore include 51110 (70 mm OD), 51210 (78 mm OD), 53210 (78 mm OD), 51310 (95 mm OD). A larger outside diameter generally means a higher load rating.
Do you supply the 53310 bearing across India?
Yes. Logass Trade Centre supplies the 53310 Pan India with technical support, from single pieces to bulk orders. Use the quote button to share your quantity and brand preference.
Can’t find your size?
We supply sizes, brands and special versions of thrust ball bearings that are not listed on this page. Type the exact size or designation you need and send it to us for a quote.
Need pricing on the 53310?
Share your quantity and preferred brand — our technical team will confirm availability and pricing within one business day.
