Deep Groove Ball Bearings
RMS12 Deep Groove Ball Bearing
38.1 × 95.25 × 23.812 mm

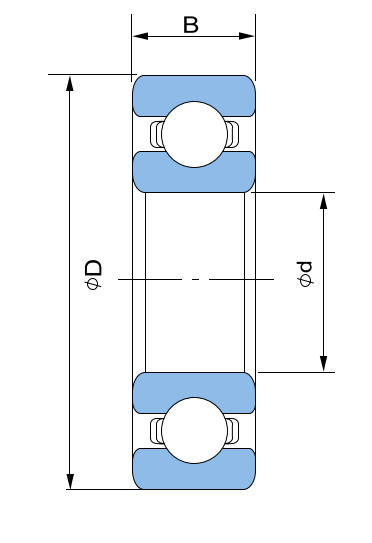

RMS12 is a deep groove ball bearing from the RMS series with a 38.1 mm bore, a 95.25 mm outside diameter and a 23.812 mm width. It has a dynamic load rating of 35,774 N and a static load rating of 21,260 N, weighing about 0.77 kg. The radial cross-section (D − d) is 57.15 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS
RMS12 Specifications
| Bearing No. | RMS12 |
|---|---|
| d (Bore) | 38.1 mm |
| D (Outer Dia.) | 95.25 mm |
| B (Width) | 23.812 mm |
| Dynamic Load | 35,774 N |
| Static Load | 21,260 N |
| Weight | 0.77 kg |
| Series | RMS Series Single Row Deep Groove Ball Bearings |
RMS12 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the RMS series page.
Other Bearings with 38.1 mm Bore
| Bearing No. | Series | D (Outer Dia.) mm | Dynamic Load N |
|---|---|---|---|
| RLS12 | RLS | 82.55 | 23,300 |
RMS12 — Frequently Asked Questions
What are the dimensions of the RMS12 bearing?
The RMS12 has a bore (d) of 38.1 mm, an outside diameter (D) of 95.25 mm and a width of 23.812 mm, so it is written 38.1 × 95.25 × 23.812 mm.
What is the load rating of the RMS12?
Dynamic load rating 35,774 N and static load rating 21,260 N.
Is the RMS12 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include RMS12-ZZ (metal shields on both sides), RMS12-2RS (rubber seals on both sides), RMS12 C3 (radial clearance larger than normal), RMS12-2RS C3 (sealed, with C3 clearance). Tell us the exact designation you need in a quote request.
Which other bearings have the same 38.1 mm bore as the RMS12?
Other deep groove ball bearings with a 38.1 mm bore include RLS12 (82.55 mm OD). A larger outside diameter generally means a higher load rating.
Do you supply the RMS12 bearing across India?
Yes. Logass Trade Centre supplies the RMS12 Pan India with technical support, from single pieces to bulk orders. Use the quote button to share your quantity and brand preference.
