F689 Miniature & Extra Small Ball Bearing
9 × 17 × 4 mm
F689 is a miniature & extra small ball bearing from the MXF-2 series with a 9 mm bore, a 17 mm outside diameter and a 4 mm width. It has a dynamic load rating of 1,557 N and a static load rating of 729 N and a speed rating of 36,900 rpm (oil lubrication), weighing about 6 g. The radial cross-section (D − d) is 8 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS
F689 Specifications

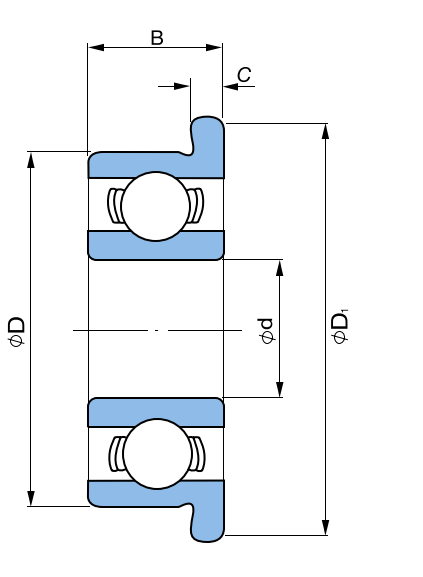

| Bearing No. | F689 |
|---|---|
| d (Bore) | 9 mm |
| D (Outer Dia.) | 17 mm |
| D (Outer Dia.) | 17 mm |
| B (Width) | 4 mm |
| C (Flange Width) | 1 mm |
| Dynamic Load | 1,557 N |
| Static Load | 729 N |
| Max. RPM | 36,900 |
| Weight | 6 g |
| Series | Flange Type Miniature & Extra Small Ball Bearings (5mm–9mm bore) |
F689 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the MXF-2 series page.
Neighbouring Sizes in the MXF-2 Series
F689 — Frequently Asked Questions
What are the dimensions of the F689 bearing?
The F689 has a bore (d) of 9 mm, an outside diameter (D) of 17 mm and a width of 4 mm, so it is written 9 × 17 × 4 mm.
What is the load rating of the F689?
Dynamic load rating 1,557 N and static load rating 729 N. The speed rating is 36,900 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Is the F689 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include F689-ZZ (metal shields on both sides), F689-2RS (rubber seals on both sides). Tell us the exact designation you need in a quote request.
Which other bearings have the same 9 mm bore as the F689?
Other miniature & extra small ball bearings with a 9 mm bore include 689 (17 mm OD), F699 (19 mm OD), 699 (20 mm OD), 609 (24 mm OD). A larger outside diameter generally means a higher load rating.
Do you supply the F689 bearing across India?
Yes. Logass Trade Centre supplies the F689 Pan India with technical support, from single pieces to bulk orders. Use the quote button to share your quantity and brand preference.
