F684 Miniature & Extra Small Ball Bearing
4 × 8 × 2.5 mm
F684 is a miniature & extra small ball bearing from the MXF-1 series with a 4 mm bore, a 8 mm outside diameter and a 2.5 mm width. It has a dynamic load rating of 576 N and a static load rating of 203 N and a speed rating of 54,900 rpm (oil lubrication), weighing about 0.74 g. The radial cross-section (D − d) is 4 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS

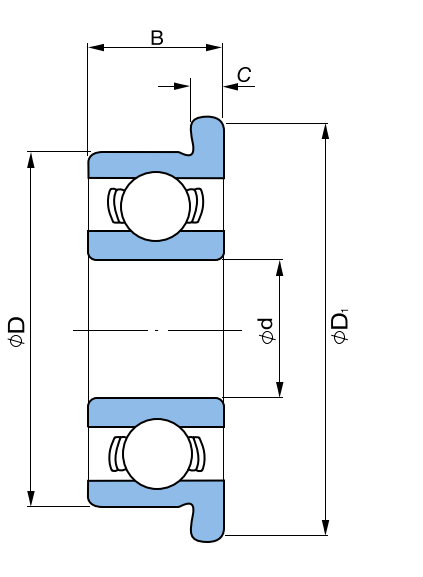

F684 Specifications
| Bearing No. | F684 |
|---|---|
| d (Bore) | 4 mm |
| D (Outer Dia.) | 8 mm |
| D (Outer Dia.) | 8 mm |
| B (Width) | 2.5 mm |
| C (Flange Width) | 0.6 mm |
| Dynamic Load | 576 N |
| Static Load | 203 N |
| Max. RPM | 54,900 |
| Weight | 0.74 g |
| Series | Flange Type Miniature & Extra Small Ball Bearings (1.5mm–4mm bore) |
F684 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the MXF-1 series page.
Neighbouring Sizes in the MXF-1 Series
F684 — Frequently Asked Questions
What are the dimensions of the F684 bearing?
The F684 has a bore (d) of 4 mm, an outside diameter (D) of 8 mm and a width of 2.5 mm, so it is written 4 × 8 × 2.5 mm.
What is the load rating of the F684?
Dynamic load rating 576 N and static load rating 203 N. The speed rating is 54,900 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Is the F684 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include F684-ZZ (metal shields on both sides), F684-2RS (rubber seals on both sides). Tell us the exact designation you need in a quote request.
Which other bearings have the same 4 mm bore as the F684?
Other miniature & extra small ball bearings with a 4 mm bore include F4M07 (7 mm OD), 633 (7 mm OD), 4M07 (8 mm OD), F4M08 (8.2 mm OD). A larger outside diameter generally means a higher load rating.
