695 Miniature & Extra Small Ball Bearing
5 × 13 × 4 mm
695 is a miniature & extra small ball bearing from the MX-2 series with a 5 mm bore, a 13 mm outside diameter and a 4 mm width. It has a dynamic load rating of 972 N and a static load rating of 387 N and a speed rating of 45,000 rpm (oil lubrication), weighing about 2.4 g. The radial cross-section (D − d) is 8 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS
695 Specifications

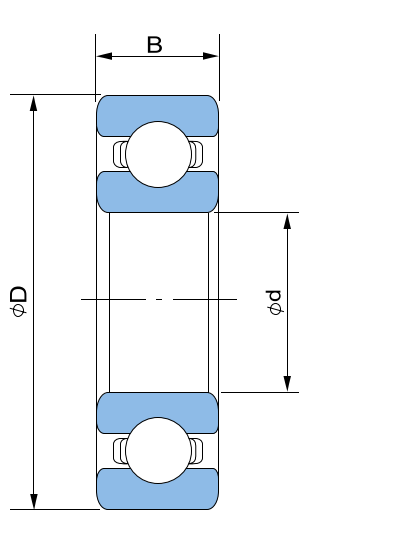

| Bearing No. | 695 |
|---|---|
| d (Bore) | 5 mm |
| D (Outer Dia.) | 13 mm |
| B (Width) | 4 mm |
| Dynamic Load | 972 N |
| Static Load | 387 N |
| Max. RPM | 45,000 |
| Weight | 2.4 g |
| Series | Open Type Miniature & Extra Small Ball Bearings (3mm–5mm bore) |
695 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the MX-2 series page.
Neighbouring Sizes in the MX-2 Series
695 — Frequently Asked Questions
What are the dimensions of the 695 bearing?
The 695 has a bore (d) of 5 mm, an outside diameter (D) of 13 mm and a width of 4 mm, so it is written 5 × 13 × 4 mm.
What is the load rating of the 695?
Dynamic load rating 972 N and static load rating 387 N. The speed rating is 45,000 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Is the 695 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include 695-ZZ (metal shields on both sides), 695-2RS (rubber seals on both sides). Tell us the exact designation you need in a quote request.
Which other bearings have the same 5 mm bore as the 695?
Other miniature & extra small ball bearings with a 5 mm bore include F5M08 (8 mm OD), 5M08 (8 mm OD), F5M10 (9 mm OD), 5M09 (9 mm OD). A larger outside diameter generally means a higher load rating.
Do you supply the 695 bearing across India?
Yes. Logass Trade Centre supplies the 695 Pan India with technical support, from single pieces to bulk orders. Use the quote button to share your quantity and brand preference.
