Angular Contact Ball Bearings
E15 Angular Contact Ball Bearing
15 × 35 × 8 mm
E15 is a angular contact ball bearing from the E-EA-BO-L-M series with a 15 mm bore, a 35 mm outside diameter and a 8 mm width. It has a dynamic load rating of 5,220 N and a static load rating of 1,035 N and a speed rating of 19,800 rpm (oil lubrication), weighing about 0.034 kg. The radial cross-section (D − d) is 20 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS

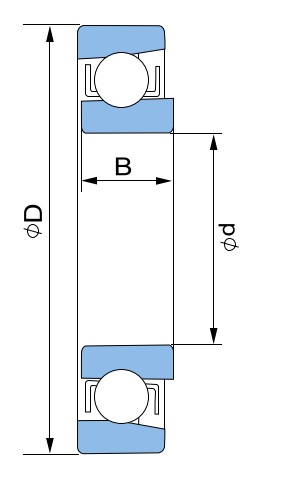

E15 Specifications
| Bearing No. | E15 |
|---|---|
| d (Bore) | 15 mm |
| D (Outer Dia.) | 35 mm |
| B (Width) | 8 mm |
| Dynamic Load | 5,220 N |
| Static Load | 1,035 N |
| Max. RPM | 19,800 |
| Weight | 0.034 kg |
| Series | E, EA, BO, L, M Series Small Angular Contact Ball Bearings |
E15 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the E-EA-BO-L-M series page.
Neighbouring Sizes in the E-EA-BO-L-M Series
E15 — Frequently Asked Questions
What are the dimensions of the E15 bearing?
The E15 has a bore (d) of 15 mm, an outside diameter (D) of 35 mm and a width of 8 mm, so it is written 15 × 35 × 8 mm.
What is the load rating of the E15?
Dynamic load rating 5,220 N and static load rating 1,035 N. The speed rating is 19,800 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Is the E15 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include E15-2RS (rubber seals on both sides), E15-ZZ (metal shields on both sides), E15 M (machined brass cage). Tell us the exact designation you need in a quote request.
Which other bearings have the same 15 mm bore as the E15?
Other angular contact ball bearings with a 15 mm bore include 7002 (32 mm OD), 3202 (35 mm OD), 5202 (35 mm OD), 7202 (35 mm OD). A larger outside diameter generally means a higher load rating.
Do you supply the E15 bearing across India?
Yes. Logass Trade Centre supplies the E15 Pan India with technical support, from single pieces to bulk orders. Use the quote button to share your quantity and brand preference.
Can’t find your size?
We supply sizes, brands and special versions of angular contact ball bearings that are not listed on this page. Type the exact size or designation you need and send it to us for a quote.
Need pricing on the E15?
Share your quantity and preferred brand — our technical team will confirm availability and pricing within one business day.
