Deep Groove Ball Bearings
6820 Deep Groove Ball Bearing
100 × 125 × 13 mm

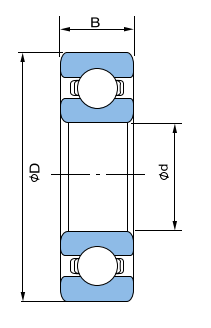

6820 is a deep groove ball bearing from the 6800 series with a 100 mm bore, a 125 mm outside diameter and a 13 mm width. It has a dynamic load rating of 17,640 N and a static load rating of 19,080 N and a speed rating of 5,040 rpm (oil lubrication), weighing about 0.313 kg. The radial cross-section (D − d) is 25 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS
6820 Specifications
| Bearing No. | 6820 |
|---|---|
| d (Bore) | 100 mm |
| D (Outer Dia.) | 125 mm |
| B (Width) | 13 mm |
| Dynamic Load | 17,640 N |
| Static Load | 19,080 N |
| Max. RPM | 5,040 |
| Weight | 0.313 kg |
| Series | 6800 Series Single Row Extra Thin Deep Groove Ball Bearings |
6820 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the 6800 series page.
Neighbouring Sizes in the 6800 Series
6820 — Frequently Asked Questions
What are the dimensions of the 6820 bearing?
The 6820 has a bore (d) of 100 mm, an outside diameter (D) of 125 mm and a width of 13 mm, so it is written 100 × 125 × 13 mm.
What is the load rating of the 6820?
Dynamic load rating 17,640 N and static load rating 19,080 N. The speed rating is 5,040 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Is the 6820 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include 6820-ZZ (metal shields on both sides), 6820-2RS (rubber seals on both sides), 6820 C3 (radial clearance larger than normal), 6820-2RS C3 (sealed, with C3 clearance). Tell us the exact designation you need in a quote request.
Which other bearings have the same 100 mm bore as the 6820?
Other deep groove ball bearings with a 100 mm bore include 6920 (140 mm OD), 6020 (150 mm OD), 16020 (150 mm OD), 6220 (180 mm OD). A larger outside diameter generally means a higher load rating.
Do you supply the 6820 bearing across India?
Yes. Logass Trade Centre supplies the 6820 Pan India with technical support, from single pieces to bulk orders. Use the quote button to share your quantity and brand preference.
