Deep Groove Ball Bearings
63006 Deep Groove Ball Bearing
30 × 55 × 19 mm
63006 is a deep groove ball bearing from the 63000 series with a 30 mm bore, a 55 mm outside diameter and a 19 mm width. It has a dynamic load rating of 13,200 N and a static load rating of 8,300 N and a speed rating of 15,000 rpm (oil lubrication), weighing about 0.162 kg. The radial cross-section (D − d) is 25 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS

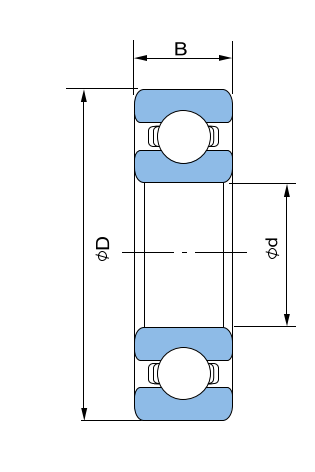

63006 Specifications
| Bearing No. | 63006 |
|---|---|
| d (Bore) | 30 mm |
| D (Outer Dia.) | 55 mm |
| B (Width) | 19 mm |
| Dynamic Load | 13,200 N |
| Static Load | 8,300 N |
| Max. RPM | 15,000 |
| Weight | 0.162 kg |
| Series | 63000 Series Single Row Deep Groove Ball Bearings |
63006 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the 63000 series page.
Neighbouring Sizes in the 63000 Series
63006 — Frequently Asked Questions
What are the dimensions of the 63006 bearing?
The 63006 has a bore (d) of 30 mm, an outside diameter (D) of 55 mm and a width of 19 mm, so it is written 30 × 55 × 19 mm.
What is the load rating of the 63006?
Dynamic load rating 13,200 N and static load rating 8,300 N. The speed rating is 15,000 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Is the 63006 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include 63006-ZZ (metal shields on both sides), 63006-2RS (rubber seals on both sides), 63006 C3 (radial clearance larger than normal), 63006-2RS C3 (sealed, with C3 clearance). Tell us the exact designation you need in a quote request.
Which other bearings have the same 30 mm bore as the 63006?
Other deep groove ball bearings with a 30 mm bore include 6806 (42 mm OD), 6906 (47 mm OD), 6006 (55 mm OD), 16006 (55 mm OD). A larger outside diameter generally means a higher load rating.
Do you supply the 63006 bearing across India?
Yes. Logass Trade Centre supplies the 63006 Pan India with technical support, from single pieces to bulk orders. Use the quote button to share your quantity and brand preference.
