Deep Groove Ball Bearings
62303 Deep Groove Ball Bearing
17 × 47 × 19 mm
62303 is a deep groove ball bearing from the 62300 series with a 17 mm bore, a 47 mm outside diameter and a 19 mm width. It has a dynamic load rating of 13,500 N and a static load rating of 6,550 N and a speed rating of 19,000 rpm (oil lubrication), weighing about 0.146 kg. The radial cross-section (D − d) is 30 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS
62303 Specifications

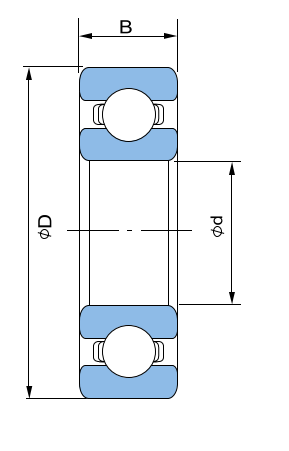

| Bearing No. | 62303 |
|---|---|
| d (Bore) | 17 mm |
| D (Outer Dia.) | 47 mm |
| B (Width) | 19 mm |
| Dynamic Load | 13,500 N |
| Static Load | 6,550 N |
| Max. RPM | 19,000 |
| Weight | 0.146 kg |
| Series | 62300 Series Single Row Deep Groove Ball Bearings |
62303 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the 62300 series page.
Neighbouring Sizes in the 62300 Series
62303 — Frequently Asked Questions
What are the dimensions of the 62303 bearing?
The 62303 has a bore (d) of 17 mm, an outside diameter (D) of 47 mm and a width of 19 mm, so it is written 17 × 47 × 19 mm.
What is the load rating of the 62303?
Dynamic load rating 13,500 N and static load rating 6,550 N. The speed rating is 19,000 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Is the 62303 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include 62303-ZZ (metal shields on both sides), 62303-2RS (rubber seals on both sides), 62303 C3 (radial clearance larger than normal), 62303-2RS C3 (sealed, with C3 clearance). Tell us the exact designation you need in a quote request.
Which other bearings have the same 17 mm bore as the 62303?
Other deep groove ball bearings with a 17 mm bore include 6803 (26 mm OD), 6903 (30 mm OD), 6003 (35 mm OD), 16003 (35 mm OD). A larger outside diameter generally means a higher load rating.
Do you supply the 62303 bearing across India?
Yes. Logass Trade Centre supplies the 62303 Pan India with technical support, from single pieces to bulk orders. Use the quote button to share your quantity and brand preference.
Can’t find your size?
We supply sizes, brands and special versions of deep groove ball bearings that are not listed on this page. Type the exact size or designation you need and send it to us for a quote.
