Deep Groove Ball Bearings
6011 Deep Groove Ball Bearing
55 × 90 × 18 mm
6011 is a deep groove ball bearing from the 6000 series with a 55 mm bore, a 90 mm outside diameter and a 18 mm width. It has a dynamic load rating of 25,470 N and a static load rating of 19,080 N and a speed rating of 8,100 rpm (oil lubrication). The radial cross-section (D − d) is 35 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS
6011 Specifications

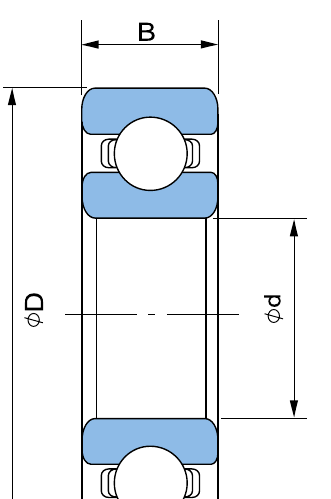

| Bearing No. | 6011 |
|---|---|
| d (Bore) | 55 mm |
| D (Outer Dia.) | 90 mm |
| B (Width) | 18 mm |
| Dynamic Load | 25,470 N |
| Static Load | 19,080 N |
| Max. RPM | 8,100 |
| Series | 6000 Series Deep Groove Ball Bearings |
6011 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the 6000 series page.
6011-ZZ
metal shields on both sides
6011-2RS
rubber seals on both sides
6011 C3
radial clearance larger than normal
6011-2RS C3
sealed, with C3 clearance
6011 N
snap ring groove in the outer ring
6011 M
machined brass cage
Neighbouring Sizes in the 6000 Series
6011 — Frequently Asked Questions
What are the dimensions of the 6011 bearing?
The 6011 has a bore (d) of 55 mm, an outside diameter (D) of 90 mm and a width of 18 mm, so it is written 55 × 90 × 18 mm.
What is the load rating of the 6011?
Dynamic load rating 25,470 N and static load rating 19,080 N. The speed rating is 8,100 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Is the 6011 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include 6011-ZZ (metal shields on both sides), 6011-2RS (rubber seals on both sides), 6011 C3 (radial clearance larger than normal), 6011-2RS C3 (sealed, with C3 clearance). Tell us the exact designation you need in a quote request.
Which other bearings have the same 55 mm bore as the 6011?
Other deep groove ball bearings with a 55 mm bore include 6811 (72 mm OD), 6911 (80 mm OD), 16011 (90 mm OD), 6211 (100 mm OD). A larger outside diameter generally means a higher load rating.
