Thrust Ball Bearings
53411 Thrust Ball Bearing
55 × 120 × 50.5 mm
53411 is a thrust ball bearing from the 534 series with a 55 mm bore, a 120 mm outside diameter and a 50.5 mm height. It has a dynamic load rating of 160,200 N and a static load rating of 324,000 N and a speed rating of 1,710 rpm (oil lubrication), weighing about 2.55 kg. The radial cross-section (D − d) is 65 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS
53411 Specifications
| Bearing No. | 53411 |
|---|---|
| d (Bore) | 55 mm |
| D (Outer Dia.) | 120 mm |
| H (Height) | 50.5 mm |
| Dynamic Load | 160,200 N |
| Static Load | 324,000 N |
| Max. RPM | 1,710 |
| Weight | 2.55 kg |

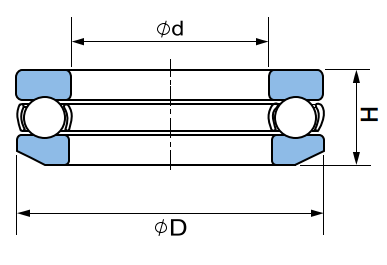

| Series | 534 Series Single Direction Thrust Ball Bearings with Spherical Housing Washer |
53411 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the 534 series page.
Neighbouring Sizes in the 534 Series
53411 — Frequently Asked Questions
What are the dimensions of the 53411 bearing?
The 53411 has a bore (d) of 55 mm, an outside diameter (D) of 120 mm and a height of 50.5 mm, so it is written 55 × 120 × 50.5 mm.
What is the load rating of the 53411?
Dynamic load rating 160,200 N and static load rating 324,000 N. The speed rating is 1,710 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Is the 53411 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include 53411 M (machined brass cage). Tell us the exact designation you need in a quote request.
Which other bearings have the same 55 mm bore as the 53411?
Other thrust ball bearings with a 55 mm bore include 51111 (78 mm OD), 51211 (90 mm OD), 53211 (90 mm OD), 52213 (100 mm OD). A larger outside diameter generally means a higher load rating.
Do you supply the 53411 bearing across India?
Yes. Logass Trade Centre supplies the 53411 Pan India with technical support, from single pieces to bulk orders. Use the quote button to share your quantity and brand preference.
Can’t find your size?
We supply sizes, brands and special versions of thrust ball bearings that are not listed on this page. Type the exact size or designation you need and send it to us for a quote.
Need pricing on the 53411?
Share your quantity and preferred brand — our technical team will confirm availability and pricing within one business day.
