Thrust Ball Bearings
53212 Thrust Ball Bearing
60 × 95 × 28 mm
53212 is a thrust ball bearing from the 532 series with a 60 mm bore, a 95 mm outside diameter and a 28 mm height. It has a dynamic load rating of 66,150 N and a static load rating of 161,100 N and a speed rating of 2,700 rpm (oil lubrication), weighing about 0.69 kg. The radial cross-section (D − d) is 35 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS

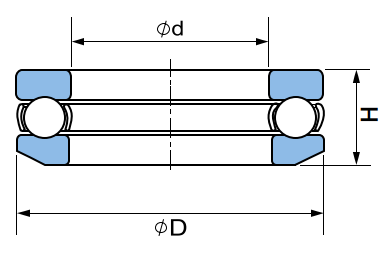

53212 Specifications
| Bearing No. | 53212 |
|---|---|
| d (Bore) | 60 mm |
| D (Outer Dia.) | 95 mm |
| H (Height) | 28 mm |
| Dynamic Load | 66,150 N |
| Static Load | 161,100 N |
| Max. RPM | 2,700 |
| Weight | 0.69 kg |
| Series | 532 Series Single Direction Thrust Ball Bearings with Spherical Housing Washer |
53212 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the 532 series page.
Neighbouring Sizes in the 532 Series
53212 — Frequently Asked Questions
What are the dimensions of the 53212 bearing?
The 53212 has a bore (d) of 60 mm, an outside diameter (D) of 95 mm and a height of 28 mm, so it is written 60 × 95 × 28 mm.
What is the load rating of the 53212?
Dynamic load rating 66,150 N and static load rating 161,100 N. The speed rating is 2,700 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Is the 53212 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include 53212 M (machined brass cage). Tell us the exact designation you need in a quote request.
Which other bearings have the same 60 mm bore as the 53212?
Other thrust ball bearings with a 60 mm bore include 51112 (85 mm OD), 51212 (95 mm OD), 51312 (110 mm OD), 52215 (110 mm OD). A larger outside diameter generally means a higher load rating.
Do you supply the 53212 bearing across India?
Yes. Logass Trade Centre supplies the 53212 Pan India with technical support, from single pieces to bulk orders. Use the quote button to share your quantity and brand preference.
