Thrust Ball Bearings
51405 Thrust Ball Bearing
25 × 60 × 24 mm
51405 is a thrust ball bearing from the 514 series with a 25 mm bore, a 60 mm outside diameter and a 24 mm height. It has a dynamic load rating of 49,950 N and a static load rating of 80,550 N and a speed rating of 3,330 rpm (oil lubrication), weighing about 0.33 kg. The radial cross-section (D − d) is 35 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS

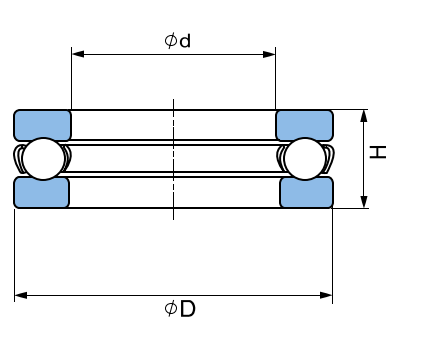

51405 Specifications
| Bearing No. | 51405 |
|---|---|
| d (Bore) | 25 mm |
| D (Outer Dia.) | 60 mm |
| H (Height) | 24 mm |
| Dynamic Load | 49,950 N |
| Static Load | 80,550 N |
| Max. RPM | 3,330 |
| Weight | 0.33 kg |
| Series | 514 Series Single Direction Thrust Ball Bearings |
51405 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the 514 series page.
Neighbouring Sizes in the 514 Series
51405 — Frequently Asked Questions
What are the dimensions of the 51405 bearing?
The 51405 has a bore (d) of 25 mm, an outside diameter (D) of 60 mm and a height of 24 mm, so it is written 25 × 60 × 24 mm.
What is the load rating of the 51405?
Dynamic load rating 49,950 N and static load rating 80,550 N. The speed rating is 3,330 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Is the 51405 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include 51405 M (machined brass cage). Tell us the exact designation you need in a quote request.
Which other bearings have the same 25 mm bore as the 51405?
Other thrust ball bearings with a 25 mm bore include 51105 (42 mm OD), 51205 (47 mm OD), 53205 (47 mm OD), 51305 (52 mm OD). A larger outside diameter generally means a higher load rating.
Do you supply the 51405 bearing across India?
Yes. Logass Trade Centre supplies the 51405 Pan India with technical support, from single pieces to bulk orders. Use the quote button to share your quantity and brand preference.
