Thrust Ball Bearings
51307 Thrust Ball Bearing

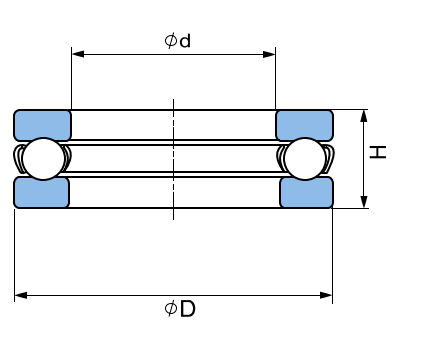

35 × 68 × 24 mm
51307 is a thrust ball bearing from the 513 series with a 35 mm bore, a 68 mm outside diameter and a 24 mm height. It has a dynamic load rating of 49,950 N and a static load rating of 94,500 N and a speed rating of 3,150 rpm (oil lubrication), weighing about 0.383 kg. The radial cross-section (D − d) is 33 mm.
Brands: NTN, FAG, SKF, NBC, DTC, SLS
51307 Specifications
| Bearing No. | 51307 |
|---|---|
| d (Bore) | 35 mm |
| D (Outer Dia.) | 68 mm |
| H (Height) | 24 mm |
| Dynamic Load | 49,950 N |
| Static Load | 94,500 N |
| Max. RPM | 3,150 |
| Weight | 0.383 kg |
| Series | 513 Series Single Direction Thrust Ball Bearings |
51307 Variants & Designations
Typical designations for this size, subject to availability. Full suffix meanings are listed on the 513 series page.
Neighbouring Sizes in the 513 Series
51307 — Frequently Asked Questions
What are the dimensions of the 51307 bearing?
The 51307 has a bore (d) of 35 mm, an outside diameter (D) of 68 mm and a height of 24 mm, so it is written 35 × 68 × 24 mm.
What is the load rating of the 51307?
Dynamic load rating 49,950 N and static load rating 94,500 N. The speed rating is 3,150 rpm with oil lubrication; for grease lubrication use about 75% of that value.
Is the 51307 available with seals, special clearance or other options?
Yes, subject to availability. Typical designations include 51307 M (machined brass cage). Tell us the exact designation you need in a quote request.
Which other bearings have the same 35 mm bore as the 51307?
Other thrust ball bearings with a 35 mm bore include 51107 (52 mm OD), 51207 (62 mm OD), 53207 (62 mm OD), 53307 (68 mm OD). A larger outside diameter generally means a higher load rating.
Do you supply the 51307 bearing across India?
Yes. Logass Trade Centre supplies the 51307 Pan India with technical support, from single pieces to bulk orders. Use the quote button to share your quantity and brand preference.
Can’t find your size?
We supply sizes, brands and special versions of thrust ball bearings that are not listed on this page. Type the exact size or designation you need and send it to us for a quote.
Need pricing on the 51307?
Share your quantity and preferred brand — our technical team will confirm availability and pricing within one business day.
